Antec Sonata II Images...

Post by Edward Ng » Fri Feb 25, 2005 5:31 pm

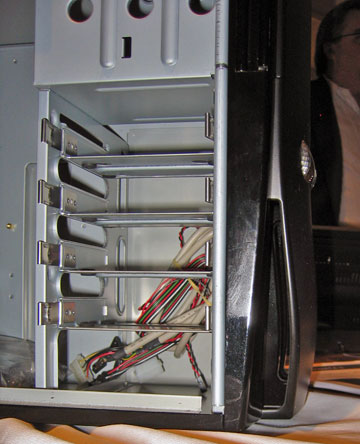

New, wider intake.

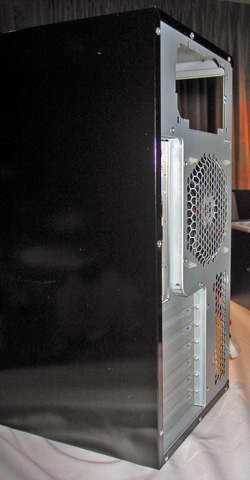

Slightly modified rear panel with intake for Chassis Air Guide.

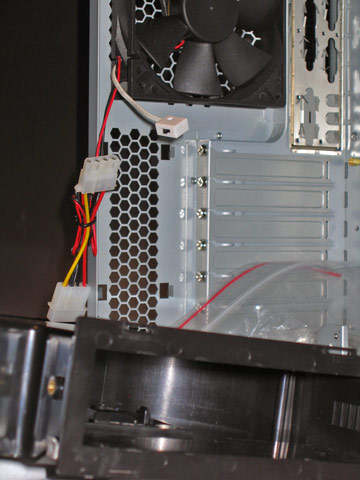

The duct, interior, and the honeycomb grill of the duct's intake.

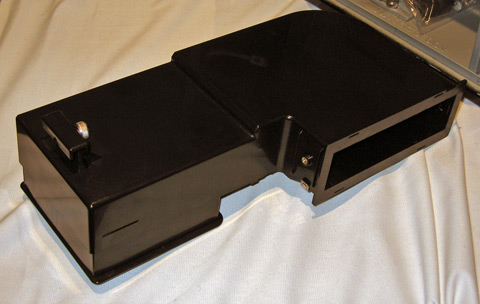

Duct, topside.

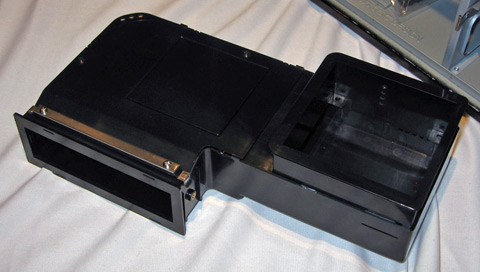

Duct, bottomside.

-Ed

Thunder
Posts: 168
Joined: Sat Jan 01, 2005 5:06 pm
Location: Bay Area Ca.

Post by Thunder » Fri Feb 25, 2005 5:34 pm

nice to see a duct that dosen't go through the side panel
good improvements

Edward Ng
SPCR Reviewer
Posts: 2696
Joined: Thu Dec 11, 2003 9:53 pm
Location: Scarsdale, NY
Contact:

Post by Edward Ng » Fri Feb 25, 2005 5:42 pm

Further details on the case were originally released here.

-Ed

Tech
Posts: 30
Joined: Wed Feb 23, 2005 10:22 am

Post by Tech » Fri Feb 25, 2005 6:38 pm

I'm so glad they ditched the tacky Antec holes on the side panel. Too bad they didn't rotate the 3.5" bays like the SLK3700.

JVM
*Lifetime Patron*
Posts: 1503
Joined: Fri Nov 07, 2003 8:44 pm
Location: USA

Post by JVM » Fri Feb 25, 2005 7:20 pm

I went to Antec's website but this model is not listed.

Does anyone know if the hard drive bays are riveted to the side panel like the original Sonata?

Is there still a filter behind the front bezel?

Would have been better if it had 4 x 5.25" bays--especially if it still has the hdd bays riveted to the side panel.

Looks like better airflow through the lower front, but I wonder how that will affect noise?

Seems like I was looking at the wrong photo. I don't think the pictures show the front with how many bays or how the lower front looks with door closed.

sthayashi
*Lifetime Patron*
Posts: 3214
Joined: Wed Nov 12, 2003 10:06 am
Location: Pittsburgh, PA

Post by sthayashi » Fri Feb 25, 2005 9:39 pm

What does that duct connect?

DGK
Posts: 70
Joined: Sun May 18, 2003 3:59 pm

Post by DGK » Fri Feb 25, 2005 10:17 pm

sthayashi wrote:What does that duct connect?
The duct connects to the back of the case, you can see its grill in some of the pics. The other end is over the cpu .
